DS/J61H water seal globe valve

DS/J61H water seal globe valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

DS/J61H-25, DS/J61H-40, DS/J61H-63 type water seal globe valves are suitable for cutting off or connecting the medium in the pipeline of the return water condensing system of thermal power plants with nominal pressure PN2.5-6.4 MPa and working temperature 0-450 C and the system pipeline of petroleum and chemical requirements and air isolation.


Product features of water seal globe valves


1, the product is designed and manufactured according to the national standard GB12235, with novel structure, reasonable material selection and beautiful appearance. The connection ends are flanged and welded, and can be configured according to the different requirements of users.


2. The packing box is designed as a water-sealed structure with 0.6-1.6 Mpa water filler. It has small friction and good sealing. It can isolate the whole system from the atmosphere and ensure good air tightness.


3. The valve stem is quenched and tempered and nitriding on surface. It has good corrosiveness and abrasion resistance.


4. Compact structure, flexible operation, convenient maintenance and long service life.


5. Inverted seal is made of stainless steel thread connection seal seat or body surfacing austenitic stainless steel, and the inverted seal is reliable. Packing replacement and maintenance can be carried out without stopping. It is convenient and quick, and does not affect the operation of the system.


Water seal globe valve standard


Design and manufacture: JB/T3595


Structure length: GB/T15188.1


Pressure temperature class: GB/T3595


Test and inspection: GB13927 JB/T9092


Performance parameters of water seal globe valves


型號
DS/J61H-25
DS/J61H-40
DS/J61H-63
工作壓力(MPa)
2.5
4.0
6.3
適用溫度(℃)
≤425
適用介質
水、蒸汽、油品、非腐蝕性氣體
材料
閥桿
1Cr13或2Cr13
閥體、閥蓋、支架
WCB25
閘板、閥瓣、密封面
Cr13型不銹鋼或硬質合金
閥座密封面
不銹鋼
閥桿螺母
鋁青銅
填料
柔性石墨

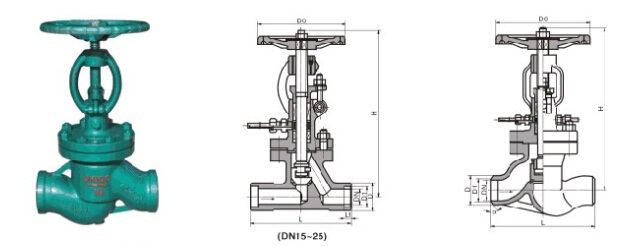

Main dimensions of water seal globe valves


公稱通徑
主要外形尺寸和連接尺寸
L
D
D1
H
D0
DS/J61H-25
15
130
36
19
11
120
20
150
44
26
11
140
25
160
44
33
12
140
32
180
48
34
-
180
40
200
55
40
-
200
50
230
64
50
-
250
65
290
82
65
-
250
80
310
94
78
-
300
100
350
117
97
-
350
125
400
144
122
-
400
150
480
170
148
-
400
200
600
220
197
-
400
DS/J61H-40
15
13
38
19
-
120
20
150
47
26
-
140
25
160
47
33
-
160
32
180
53
34
-
160
40
200
57
40
-
200
50
230
68
50
-
250
65
290
85
65
-
280
80
310
98
78
-
320
100
350
122
97
-
350
125
400
148
122
-
400
150
480
176
148
-
400


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.DS/J61H water seal globe valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
