J44H angle stop valve

J44H angle stop valve
  • sell:021-32051999
  • sell:021-32050777
  • fax:021-66099555

Details

  • Product Introduction
  • Service Promise
  • Ordering Process

The opening and closing parts of the J44H Angle Globe valve are plug-shaped discs, the sealing surface is plane or conical, and the disc moves in a straight line along the center line of the fluid. The movement of the valve stem, there are lifting rod type (stem lifting, hand wheel does not rise and fall), there are also lifting rotating rod type (hand wheel and stem together with rotating lifting, nut set on the valve body).


Features of angle cut-off valves


1, simple structure, manufacturing and maintenance is more convenient.


2, the work stroke is small, the opening and closing time is short.


3, good sealing performance, small friction force between the sealing surfaces and long life.


Design and manufacture conform to Chinese national standard.


1, the basic form of structure: angle type


2. Nominal pressure: PN1.6-4.0 (MPa).


3, nominal diameter: DN15-300 (mm)


Application Specification for angle cut-off valves


遵循規范
STANDARD
設計與制造
GB12233/GB 12235
結構長度
GB 12221/JB96(長系列)
結構長度
GB78/JB79(GB、HG、SH)
壓力試驗
GB/T 13927
標志
GB 12220
供貨
GB/T12252

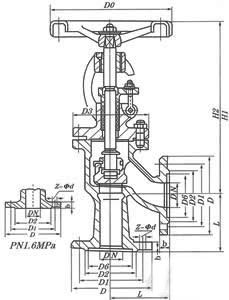

Main dimensions of Angle Globe Valves


J44H angle cut-off valve -1.6MPa


DN
in
L
D
D1
D2
f
b
z-φd
Do
H1
H2
W
15
1/2
65/90
95
65
45
2
14
4-φ14
100
240
265
7
20
3/4
75/95
105
75
55
2
16
4-φ14
100
245
270
7.5
25
1
80/100
115
85
65
2
16
4-φ14
120
250
275
8.5
32
21/4
95/105
135
100
78
2
18
4-φ18
140
260
290
12
40
21/2
100/115
145
110
85
2
18
4-φ18
140
290
325
14
50
2
115/125
160
125
100
2
20
4-φ18
160
300
335
19
65
21/2
145
180
145
120
2
20
4-φ18
180
355
400
27
80
3
155
195
160
135
2
22
4-φ18
240
400
450
42
100
4
175
215
180
155
2
24
8-φ18
240
455
495
50
125
5
200
245
210
185
2
26
8-φ18
280
530
560
64
150
6
240/225
280
240
210
2
28
8-φ23
320
605
650
85
200
8
275
335
295
265
2
30
8-φ23
360
650
770
155


J44 H 2.5MPa


DN
in
L
D
D1
D2
f
b
z-φd
Do
H1
H2
W
15
1/2
65/90
95
65
45
2
16
4-φ14
120
245
270
7.5
20
3/4
75/95
105
75
55
2
16
4-φ14
120
250
275
8.8
25
1
80/100
115
85
65
2
16
4-φ14
140
260
290
11
32
21/4
95/105
135
100
78
2
18
4-φ18
140
290
325
13
40
21/2
100/115
145
110
85
3
18
4-φ18
160
300
335
18
50
2
115/125
160
125
100
3
20
4-φ18
180
355
400
31
65
21/2
145
180
145
120
3
22
8-φ18
220
400
450
39
80
3
155
195
160
135
3
22
8-φ18
280
450
495
50
100
4
175
230
190
160
3
24
8-φ23
320
530
590
60
125
5
200
270
220
188
3
28
8-φ25
380
600
650
75
150
6
240/225
300
250
218
3
30
8-φ25
400
650
770
98
200
8
275
360
310
278
3
34
12-φ23
450
700
850
170


The best quality, first-class service Qigao creates more value for you!

"Qigao Valve" expects to continuously improve service quality and strive for excellence. "Sincere service" is the eternal theme of "Qigao". "Qigao" strictly followsIS09001-2000 Quality system certification requirements, strict quality control, responsibility to people, to ensure the healthy operation of production, sales and service. Strengthen communication with users and provide quality products to our customers with perfection and perfect service. Hereby our factory makes the following commitments:

Product Standards:

Products in strict accordance with ChinaGB、HG Standard and USAPISuch as standard design, manufacturing, acceptance. The hardness of the sealing surface meets the requirements of the state and the width exceeds the national standard.

pre-sale service:

Product introduction, technical exchange, non-standard product design, troubleshooting。

Sale service:

A trustworthy contract guarantees timely delivery and keeps in touch with customers. For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" brand product quality period is from the factory12In the month, the implementation of the "three guarantees" service (return, replacement, warranty).

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions, so as to further improve product quality.

3、Respond quickly to the quality of user complaints, after-sales service personnel rushed to the scene in 24-36 hours (48 hours outside the province).

4、For after-sales service, users are required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of Qigao.

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us in advance to tell the required valve model, specification, quantity, delivery time and location, and timely transfer to the factory account according to the total 30% deposit or full payment. The rest of the payment is pending. Import before shipment to arrange delivery in time.



Order Process:

1、Customer purchase list fax to021-33872143,Or call us 021-33872141

2、Receive customer purchase list, provide valve model selection and quotation (price list)。

3、Specific agreement: delivery date, special requirements, etc.。

download Google:

1、If the customer has special requirements for the product, the following instructions must be provided in the order contract.:

a、Structure length;

b、Connection Type;

c、Nominal diameter, full diameter, reduced diameter, pipe size;

d、Operating medium and temperature, pressure range;

e、Tests, inspection standards and other requirements

2、The factory can configure various types of driving devices according to customer's specific requirements.。

3、If the type and model of the valve are determined by the customer, the customer shall correctly state the meaning and requirements of the model and sign the contract under the condition that the supplier and the buyer understand each other.

4、For futures and order customers, please call us first to tell the required valve model, specifications, quantity, delivery time and location, and press the total30%The deposit or full payment will be remitted to our factory account in time., The rest of the payment will be remitted before shipment to arrange delivery in time.。

Sale service:

Trustworthy contract, guarantee timely delivery, keep in touch with customers at any time。

For special or duplicate products, our factory arranges technicians to use and troubleshoot the products for users.

After sales service:

1、"Qigao" product quality period is from the factory12Month, practiceThree packsService (return, replacement, warranty)。

2、During the use of our products, our factory regularly organizes technical and quality inspection personnel to visit and consult users for feedback on product quality, usage status and improvement opinions.,
In order to further improve product quality。

3、Respond quickly to the quality of user complaints, after-sales service personnel24-36Hours (outside the province48Hour) rushed to the scene。

4、For after-sales service, the user is required to fill out the quality feedback information form after the service and make an appraisal opinion in order to improve the service quality of “Qigao”.。

statement

  1. All text, data and pictures in this article are for reference only.J44H angle stop valvePlease contact us at 4000-700-665 for details of performance, size and price.
  2. If there is no explanation, this article is original, reprint, please indicate the address of this article, thank you for your cooperation!
